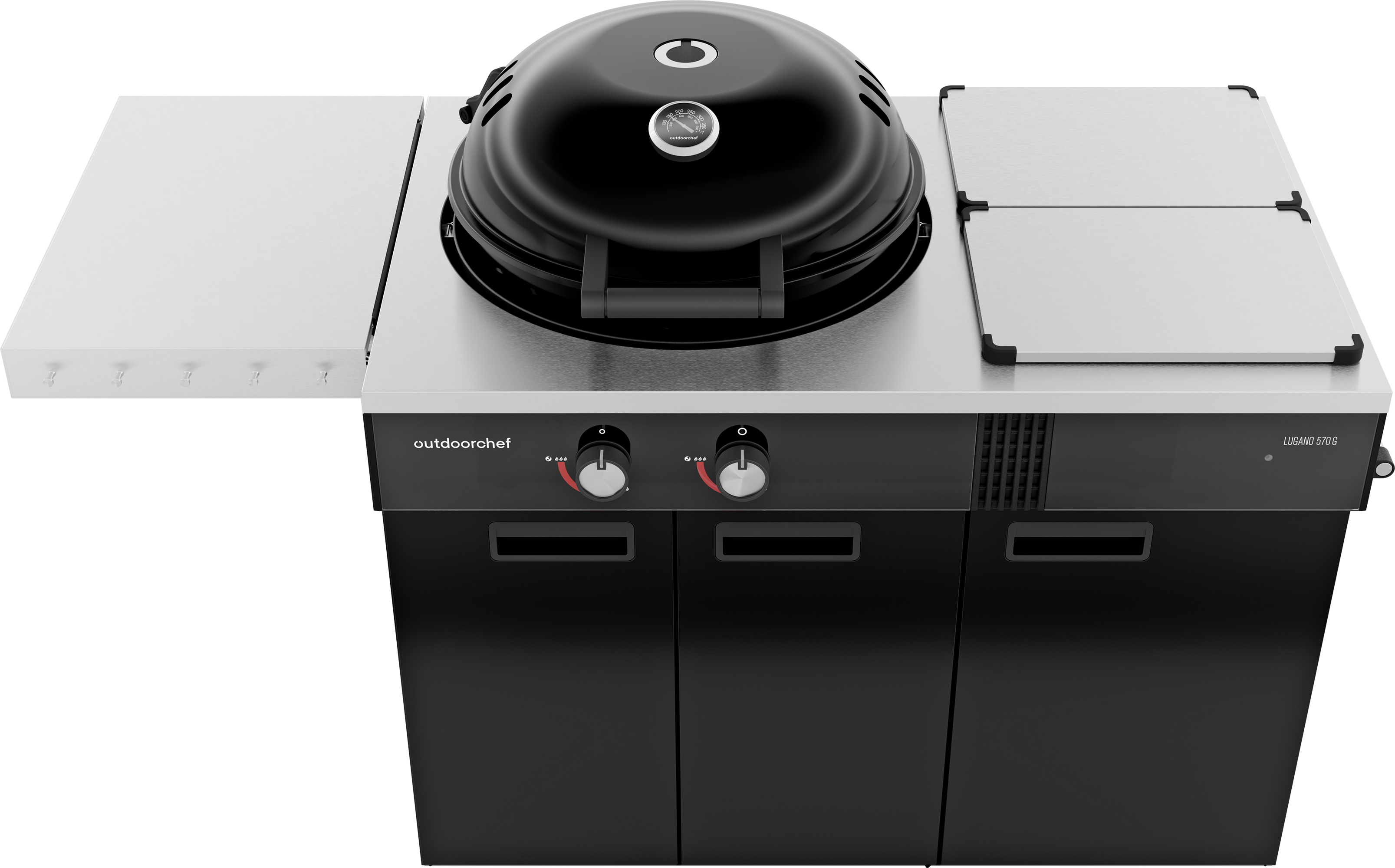

Outdoorchef Lugano 570 G EVO II

The most compact outdoor kitchen in the world

with a huge temperature range of 80 °C - 900 °C

Maximum range

of grilling options in just one grill station

Gas kettle with

2 separately and steplessly adjustable ring burners (9.5 kW)

Indirect grilling across the entire grilling area

thanks to patented funnel system

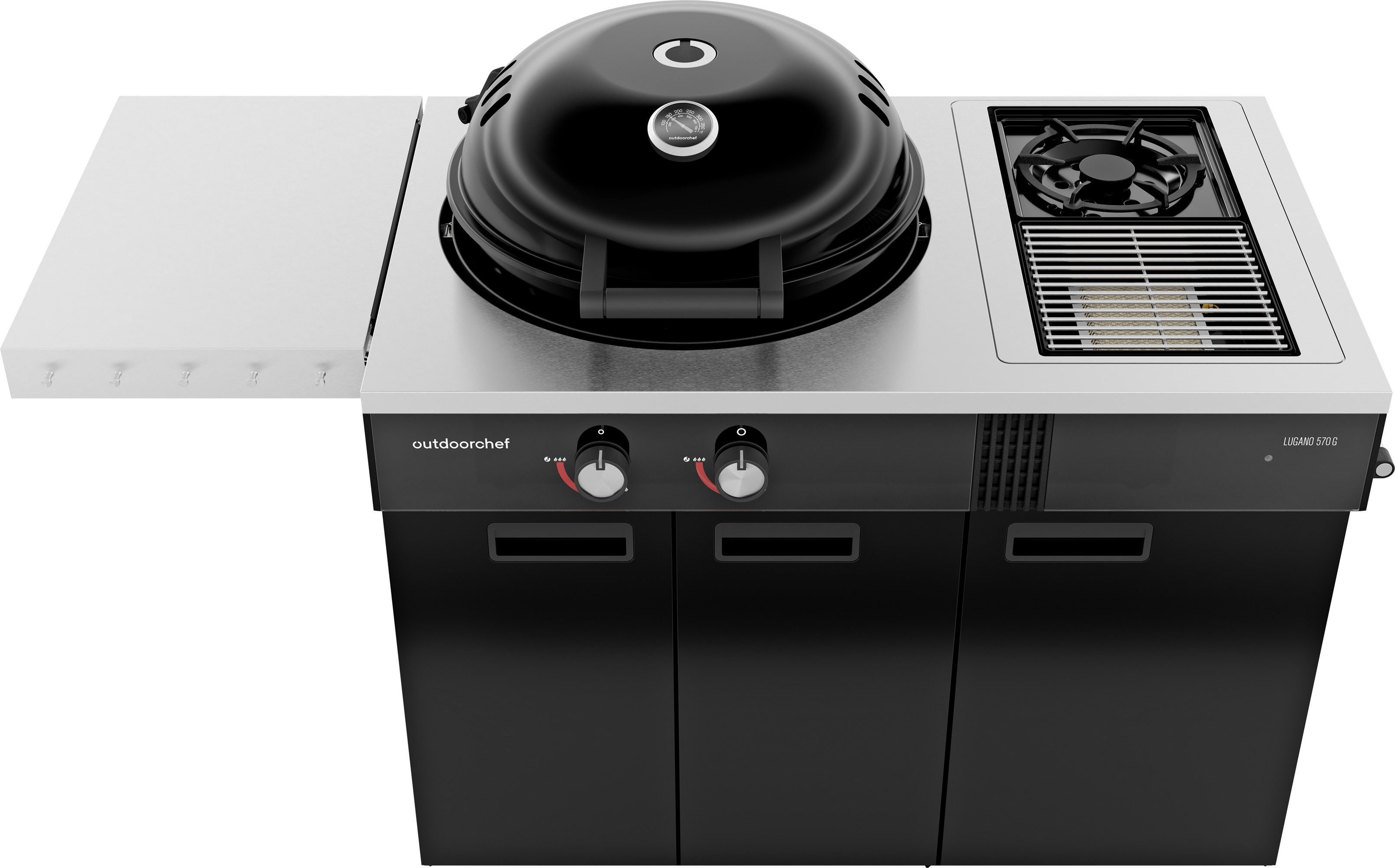

Blazing Zone

900 °C infrared burner

with HEAT diffuser for 250 °C - 350 °C

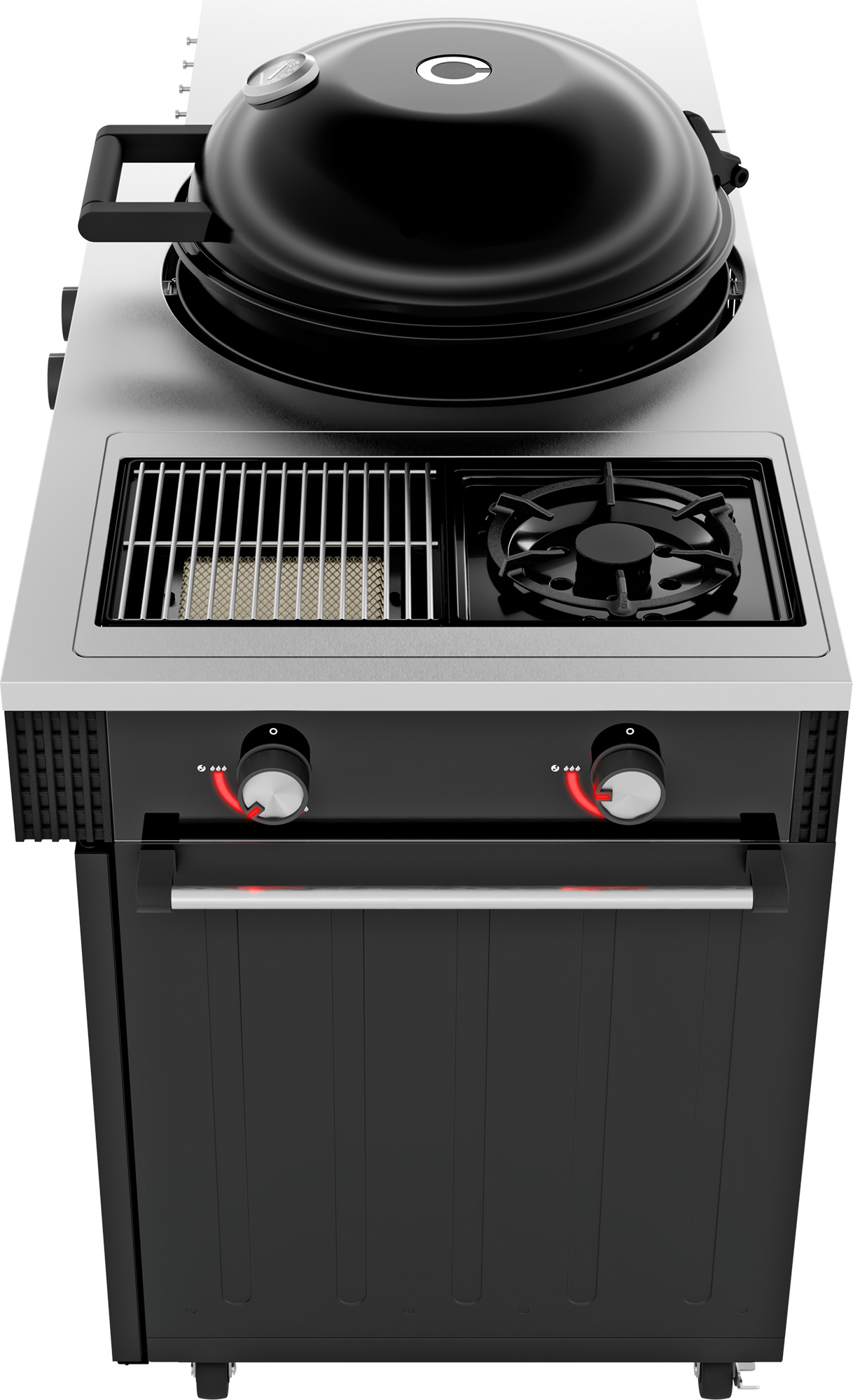

Cooking Zone

side burner with height-adjustable pot stand

for pans, pots and woks

Illuminated cabinet interior

when the door is opened

With large removable

side shelf

incl. magnetic hook rail

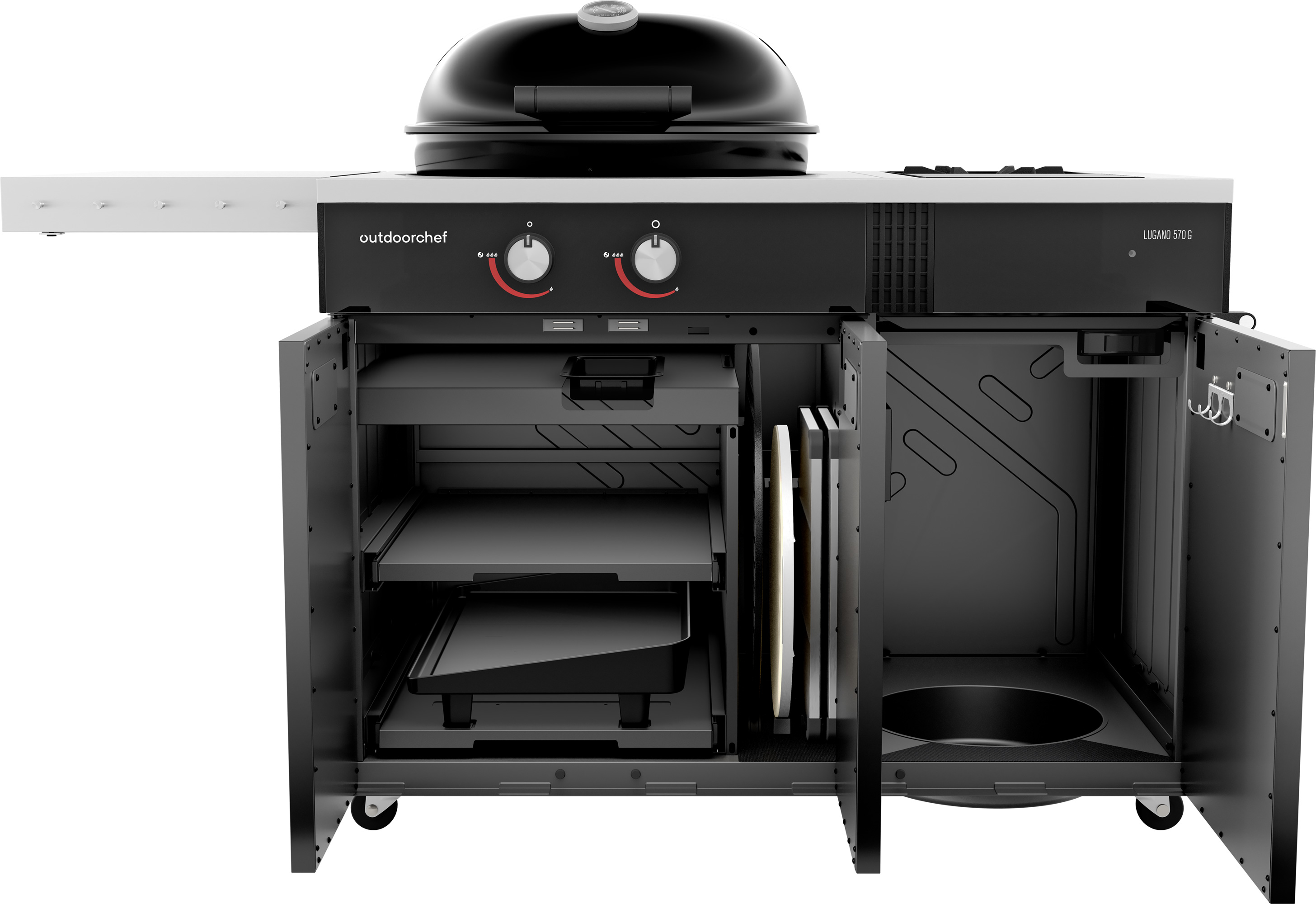

2 heavy-duty drawers

with a load capacity of up to 15 kg per drawer

Electronic multiple ignition

and gas safety system

Technical information

Power and burner
Blazing Zone infrared burnerja
Cooking Zone performance6,4 kW
Cooking Zone side burnerja
Gas typeFlüssiggas (LPG)
Main burner materialEdelstahl
Main burner output9,5 kW
Maximum gas consumption1130 g/h
Number of main burners2
Performance Blazing Zone3,4 kW
Rear burnernein
Total performance15,9 kW
Grill surface and grates
Diameter of grill surface54 cm
Grill grate area2290 cm²
Grill grate materialEdelstahl
Number of guests8-12
Width of the grilling surface54 cm
Dimensions, weight and packaging
Height110 cm
Product weight116 kg
Wide grill with side shelves folded down129 cm
Width162 cm
Working height94 cm
depth73 cm
Details / Features
Double-walled lidnein
Foldable side shelf(s)ja
Gas cylinder in the base cabinet8 kg
Ignition Cooking ZoneOne touch ignition / Elektrozündung
Ignition of main burnerOne touch ignition / Elektrozündung
Illumination of the rotary controlsja
Integrated cutlery holderja
Lid thermometerja
Power outlet requirednein
Removable grease collection trayvorne
modelGasgrill
materials
Burner chamber materialStahl pulverbeschichtet
ColorSchwarz
Lid materialStahl porzellanemailliert
Material Flame protection plateskein Flammschutz, da unter Trichter
Material base cabinet / base frameStahl, pulverbeschichtet
Ignition Blazing ZoneOne touch ignition / Elektrozündung
Power and burner
Blazing Zone infrared burnerja
Cooking Zone performance6,4 kW
Cooking Zone side burnerja
Gas typeFlüssiggas (LPG)
Main burner materialEdelstahl
Main burner output9,5 kW
Maximum gas consumption1130 g/h
Number of main burners2
Performance Blazing Zone3,4 kW
Rear burnernein
Total performance15,9 kW
Grill surface and grates
Diameter of grill surface54 cm
Grill grate area2290 cm²
Grill grate materialEdelstahl
Number of guests8-12
Width of the grilling surface54 cm
Dimensions, weight and packaging
Height110 cm
Product weight116 kg
Wide grill with side shelves folded down129 cm
Width162 cm
Working height94 cm
depth73 cm
Details / Features
Double-walled lidnein
Foldable side shelf(s)ja
Gas cylinder in the base cabinet8 kg
Ignition Cooking ZoneOne touch ignition / Elektrozündung
Ignition of main burnerOne touch ignition / Elektrozündung
Illumination of the rotary controlsja
Integrated cutlery holderja
Lid thermometerja
Power outlet requirednein
Removable grease collection trayvorne
modelGasgrill
materials
Burner chamber materialStahl pulverbeschichtet
ColorSchwarz
Lid materialStahl porzellanemailliert
Material Flame protection plateskein Flammschutz, da unter Trichter
Material base cabinet / base frameStahl, pulverbeschichtet
Ignition Blazing ZoneOne touch ignition / Elektrozündung

Product and Safety Information, Downloads

No files are available for this product.
